Desktop Marking Machine(Fiber Laser)

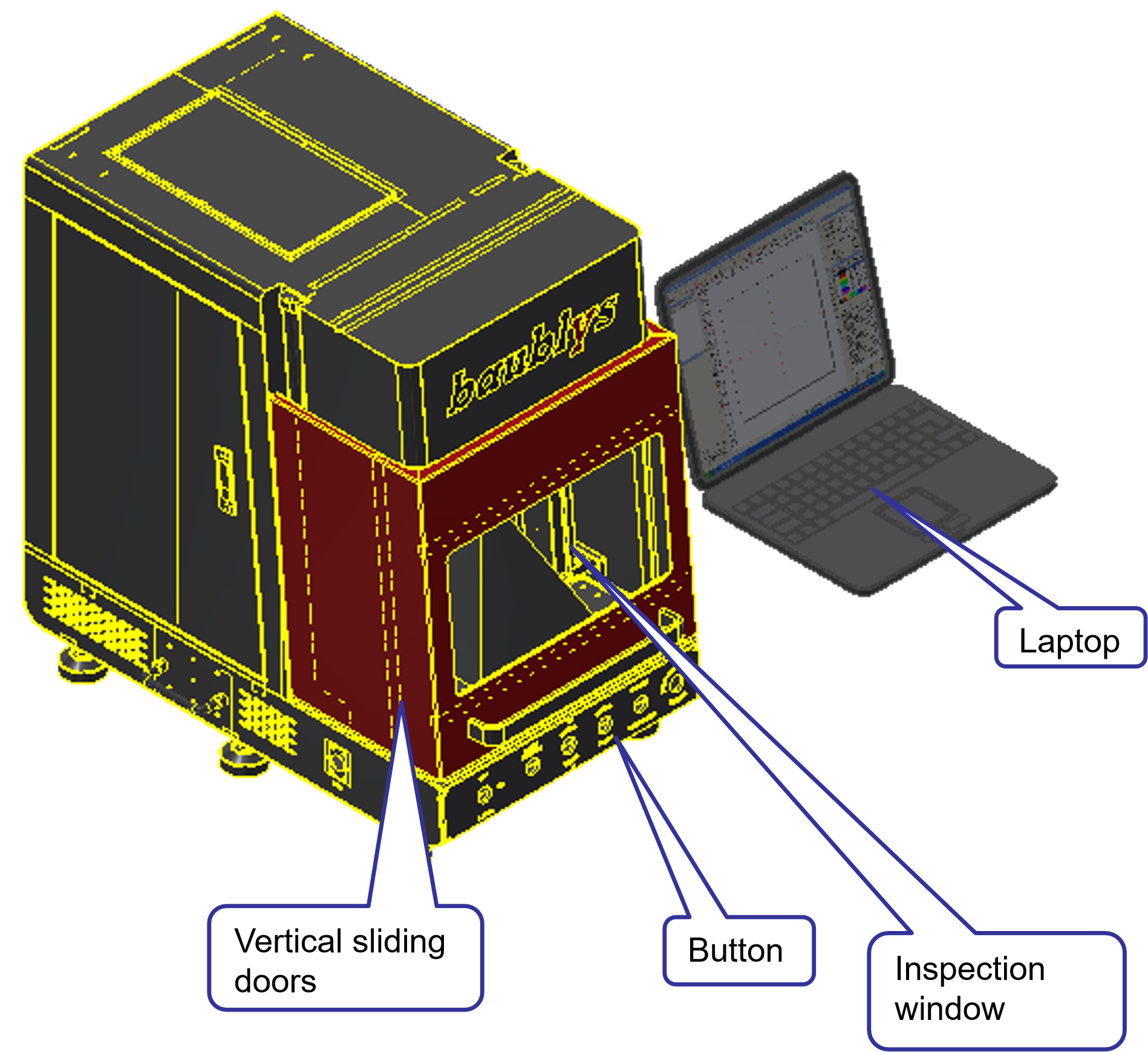

Constitution

  • Equipment cabinet*1
  • Laser system*1
  • Electric lifting body*1
  • Electrical components*some
  • Laptop*1
Category:

Specifications





Laser type Fiber laser
Wavelength 1064 nm
Output power 20 W
Laser hazard classification Class IV
Marking range 100×100mm
Working distance 190mm(± 10mm)
Warm-up time <30 minutes (cooling down before start-up); <10 minutes (in standby mode)
System software Windows 10
Memory 4G
Cooling system Air-cooled
Total power consumption ≤1KW

Work Environment Requirements

Operating temperature requirements 15°C to 28°C (Optimum operating temperature 25°C) air-conditioned workshop
Operating humidity 20% ～80%RH
Power demand of the entire machine Single-phase AC 220V, 15A, 50Hz
Power grid fluctuation ＜±5%
Power grid ground wire The grounding wire of the power grid complies with the national standards for computer rooms
Foundation amplitude Recommended to be less than 50 μm; Vibration acceleration: Recommended to be less than 0.05 g
Other requirements Please avoid installation in the following locations: areas with high levels of dust, debris, or oil mist; locations subject to frequent vibration or impact; areas where access to chemicals or flammable/explosive substances is possible; vicinity of high-frequency interference sources; locations prone to condensation.
